Step 1 - Install Packages
In this step, we will install some RPM packages. The packages are for the module manager (based on perl) and packages for the InspIRCd installation. Log in to the server and switch to root with the sudo command:
ssh inspircd@192.168.1.102
sudo su
Install the Perl extensions so we can use module manager later.
yum -y install perl perl-libwww-perl perl-Crypt-SSLeay perl-LWP-Protocol-https
Then install gnutls and the gcc compiler for InspIRCd installation:
yum -y install gcc-c++ gnutls gnutls-devel gnutls-utils pkgconfig wget
We want to run InspIRCd as irc user, so we need to create a new account on the system. Add the new user with the useradd command below:
useradd -m -s /bin/bash irc
-m = create a home folder for the user.
-s = define the shell - we use the /bin/bash shell.
Step 3 - Install InspIRCd
From the root user, switch to the new account irc:
su - irc
Now we are in the home directory of the irc user, download the inpircd source code with the wget command, and extract it:
wget https://github.com/inspircd/inspircd/archive/v3.4.0.tar.gz
tar -xzvf v3.4.0.tar.gz
Go to the inspircd directory:
cd inspircd-3.4.0/
Enable the gnutls support for inspIRCd:
./configure --enable-extras=m_ssl_gnutls.cpp
And then install it, we will install InspIRCd on the home directory "":
./configure

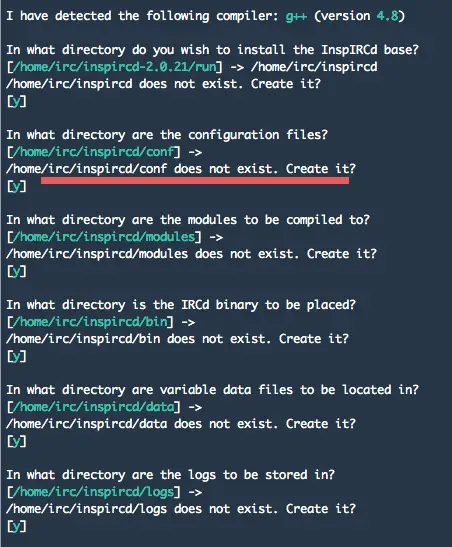

You will be asked for the installation directory, we will use "/home/irc/inspircd/" as the installation directory. Type the complete path of the directory and press y or enter.
Now run:
make
make install
Wait for installation process to finish, then remove the inspircd-2 directory:
cd ~/
rm -rf inspircd-3.400
Step 4 - Configure InspIRCd
If all installation is done, go to the inspircd directory.
cd inspircd/
Create a new "cert" directory for the certificate files and create new certificates with the certtool command - or you can use openssl to generate it.
mkdir cert; cd cert
certtool --generate-privkey --outfile key.pem
certtool --generate-self-signed --load-privkey key.pem --outfile cert.pem
Now we have a certificate and key file in the cert directory:
cert.pem
key.pem
Next, go to the conf directory and create a new configuration file inspircd.conf:
cd ~/inspircd/conf/
vi inspircd.conf
Paste the configuration below:
<config format="xml">
<define name="bindip" value="1.2.2.3">
<define name="localips" value="&bindip;/24">
####### SERVER CONFIGURATION #######
<server
name="chat.inspircd.co"
description="Welcome to inspird World"
id="97K"
network="chat.inspircd.co">
####### ADMIN INFO #######
<admin
name="jun naruse"
nick="naruse"
email="naruse@inspircd.co">
####### PORT CONFIGURATION #######
<bind
address=""
port="6697"
type="clients"
ssl="gnutls">
<module name="m_ssl_gnutls.so">
<gnutls certfile="/home/irc/inspircd/cert/cert.pem" keyfile="/home/irc/inspircd/cert/key.pem" priority="NORMAL:-MD5" hash="sha1">
<bind
address=""
port="7000"
type="servers">
####### DIE and RESTART CONFIGRATION #######
<power
diepass="mypassword"
restartpass="mypassword">
####### CONNECT CONFIGURATION #######
<connect deny="3ffe::0/32" reason="The 6bone address space is deprecated">
<connect
name="main"
allow="*"
#maxchans="30"
timeout="10"
pingfreq="120"
hardsendq="1M"
softsendq="8192"
recvq="8K"
threshold="10"
commandrate="1000"
fakelag="on"
localmax="10"
globalmax="10"
useident="no"
limit="5000"
modes="+x">
####### CIDR CONFIGURATION #######
<cidr
ipv4clone="32"
ipv6clone="128">
####### INCLUDE FILE #######
<include file="conf/opers.conf">
#<include file="conf/examples/links.conf.example">
####### MISCELLANEOUS CONFIGURATION #######
<files motd="conf/motd.txt" rules="conf/rules.txt">
####### MAXIMUM CHANNELS #######
<channels
users="20"
opers="60">
####### PID FILE #######
<pid file="/home/irc/inspircd/inspircd.pid">
####### BANLIST LIMITS #######
<banlist chan="#largechan" limit="128">
<banlist chan="*" limit="69">
####### SERVER OPTIONS #######
<options
prefixquit="Quit: "
suffixquit=""
prefixpart="""
suffixpart="""
syntaxhints="no"
cyclehosts="yes"
cyclehostsfromuser="no"
ircumsgprefix="no"
announcets="yes"
allowmismatch="no"
defaultbind="auto"
hostintopic="yes"
pingwarning="15"
serverpingfreq="60"
defaultmodes="nt"
moronbanner="You're banned! Email yone@natsu.com with the ERROR line below for help."
exemptchanops="nonick:v flood:o"
invitebypassmodes="yes"
nosnoticestack="no"
welcomenotice="yes">
####### PERFORMANCE CONFIGURATION #######
<performance
netbuffersize="10240"
somaxconn="128"
limitsomaxconn="true"
softlimit="12800"
quietbursts="yes"
nouserdns="no">
####### SECURITY CONFIGURATION #######
<security
announceinvites="dynamic"
hidemodes="eI"
hideulines="no"
flatlinks="no"
hidewhois=""
hidebans="no"
hidekills=""
hidesplits="no"
maxtargets="20"
customversion=""
operspywhois="no"
restrictbannedusers="yes"
genericoper="no"
userstats="Pu">
####### LIMITS CONFIGURATION #######
<limits
maxnick="31"
maxchan="64"
maxmodes="20"
maxident="11"
maxquit="255"
maxtopic="307"
maxkick="255"
maxgecos="128"
maxaway="200">
####### LOGGING #######
<log method="file" type="* -USERINPUT -USEROUTPUT" level="default" target="logs/ircd.log">
####### WHOWAS OPTIONS #######
<whowas
groupsize="10"
maxgroups="100000"
maxkeep="3d">
####### BAN OPTIONS #######
<badip
ipmask="192.0.2.69"
reason="No porn here thanks.">
<badnick
nick="ChanServ"
reason="Reserved For Services">
<badnick nick="NickServ" reason="Reserved For Services">
<badnick nick="OperServ" reason="Reserved For Services">
<badnick nick="MemoServ" reason="Reserved For Services">
<badhost
host="*@banneduser.example.net">
<badhost host="root@*" reason="Don't IRC as root!">
<badhost host="*@198.51.100.0/24" reason="This subnet is bad.">
# exception: Hosts that are exempt from [kgz]lines.
<exception
host="*@ircop.example.com"
reason="Oper's hostname">
####### INSANE BAN OPTIONS #######
<insane
hostmasks="no"
ipmasks="no"
nickmasks="no"
trigger="95.5">
Edit the server configuration block for your server:
name: Hostname or FQDN of the server
description: Your server description
id: SID of the server - 2 number with 1 letter
network: name of your network
Edit the admin info.
name: the real name
nick: nick used on IRC network
email: email of admin
Edit the bind address for port and the ssl configuration.
address: server IP address - not a hostname
port: port usage
type: clients or servers type
ssl: encryption used - openssl or gnutls
edit die and restart configuration.
This configuration is used to set the password to restart or shutdown for trusted ircops.
diepass="mypassword"
restartpass="mypassword"
Save the file and exit.
Now create new file opers.conf for the operator configuration.
vi opers.conf
Paste the oper configuration below:
<class
name="Shutdown"
commands="DIE RESTART REHASH LOADMODULE UNLOADMODULE RELOADMODULE GLOADMODULE GUNLOADMODULE GRELOADMODULE"
usermodes="*"
chanmodes="*">
<class name="SACommands" commands="SAJOIN SAPART SANICK SAQUIT SATOPIC SAKICK SAMODE OJOIN">
<class name="ServerLink" commands="CONNECT SQUIT RCONNECT RSQUIT MKPASSWD ALLTIME SWHOIS JUMPSERVER LOCKSERV UNLOCKSERV" usermodes="*" chanmodes="*" privs="servers/auspex">
<class name="BanControl" commands="KILL GLINE KLINE ZLINE QLINE ELINE TLINE RLINE CHECK NICKLOCK NICKUNLOCK SHUN CLONES CBAN CLOSE" usermodes="*" chanmodes="*">
<class name="OperChat" commands="WALLOPS GLOBOPS" usermodes="*" chanmodes="*" privs="users/mass-message">
<class name="HostCloak" commands="SETHOST SETIDENT SETIDLE CHGNAME CHGHOST CHGIDENT" usermodes="*" chanmodes="*" privs="users/auspex">
<type
name="NetAdmin"
classes="SACommands OperChat BanControl HostCloak Shutdown ServerLink"
vhost="netadmin.inspircd.co"
modes="+s +cCqQ">
<type name="GlobalOp" classes="SACommands OperChat BanControl HostCloak ServerLink" vhost="ircop.inspircd.co">
<type name="Helper" classes="HostCloak" vhost="helper.inspircd.co">
####### OPERATOR CONFIGURATION #######
<oper
name="naruse"
password="mypassword"
host="brain@dialup15.isp.test.com *@localhost *@example.com *@*"
type="NetAdmin">
Save the file and exit.
Eedit the oper config as follows:
name: name used on the net
password: password to gain the oper
host: define your host, if you want to all host or IP can gain the oper access, define as "*@*".
type: type of the operator - NetAdmin, Helper, GlobalOp.
Next, copy the samples of motd and rules file from the examples directory.
cp examples/motd.txt.example motd.txt
cp examples/rules.txt.example rules.txt
Then create the inspircd configuration, you have to create a new file links.conf for the services configuration. We will use anope services.
vi links.conf
Paste configuration below:
<link name="services.inspircd.co"
ipaddr="127.0.0.1"
port="7000"
sid="3AX"
allowmask="127.0.0.0/8"
sendpass="iamalive"
recvpass="iamalive">
<uline server="services.inspircd.co" silent="yes">
Save and exit.
Then copy the modules configuration from examples directory.
cp examples/modules.conf.example modules.conf
edit modules.conf and uncomment the modules below:
m_alias - line 65
m_chghost.so - line 463
m_customprefix - line 628
m_globops - line 814
m_hidechans - line 842
m_services_account - line 1630
m_svshold.so - line 1795
m_spanningtree - line 1902
Save and exit.

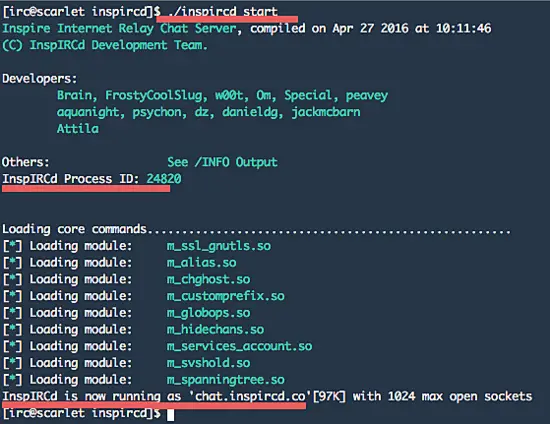

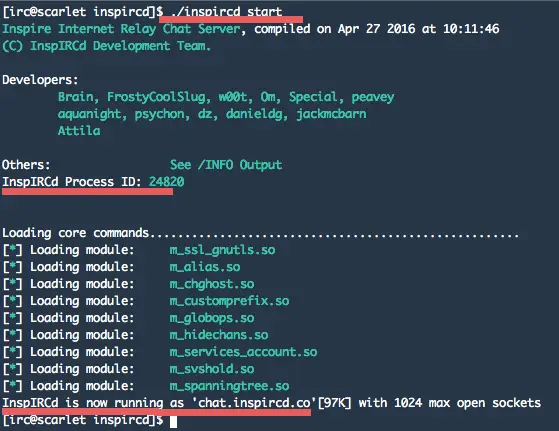

And finally, go back to the inspircd directory, and then start the inspircd.
cd ~/inspircd/
./inspircd start
If you want to check the inspircd port, you can use the netstat command below:
netstat -plntu
You can see port 6697 and 7000 opened.
Inspircd has been successfully installed.
