The Four Horsemen of Linux Mail Transfer: Exim, Postfix, Sendmail, and Qmail

Considering how important and popular email is today, it shouldn’t surprise anyone that there are millions of email servers currently operating on the public internet. According to a 2019 survey from (http://www.securityspace.com/s_survey/data/man.201907/mxsurvey.html), there are approximately 1.8 million email servers online!

Given the long history of email (dating back to 1971), and the massive number of email servers online, you’d be right to assume that there are many different email server platforms available. However, according to the securityspace.com survey, three types of email servers account for more than 95% of the global market share:

1. 1. Exim
   2. Postfix
   3. Sendmail

The top three email servers on the internet are Exim (with over 55%), Postfix (over 30%), and Sendmail (about 4%). All three of these email platforms, and Qmail, were originally developed for Unix-Like or Linux based Operating Systems.

Today, with the widespread availability of easy and low-cost cloud-hosted server providers, anyone can setup their own email server. This guide focuses on deploying, configuring, and discussing best practices and security concerns for Exim, Postfix, Sendmail, and Qmail.

Exim – Overview + Pros & Cons

Exim is an MTA (Mail Transfer Agent) for Unix-like operating systems first written in 1995 by Philip Hazel. Exim is licensed under the GPLv2 license. Exim is used extensively all around the world. According to the study noted earlier, as of 2019 Exim accounted for approximately 57% of all online public email servers on the internet. Exim4 is currently the default MTA on all Debian-based GNU/Linux systems, including Ubuntu.

Exim – Pros

• Default MTA on Debian-based Linux distributions
• Easy install, basic install is guided via user interface
• Popular and well documented
• Plenty of community support
• Secure

Exim – Cons

• Arguably more difficult to maintain/administer post-deployment than Postfix

Postfix – Overview + Pros & Cons

Postfix is an MTA (mail transfer agent) for Unix-like operating systems developed by Wietse Venema in partnership with IBM in 1997. Postfix is licensed under the IBM Public License. As of 2019, Postfix is still under active development by its creator and a team of contributors. According to the following study (http://www.securityspace.com/s_survey/data/man.201907/mxsurvey.html),as of 2019 Postfix accounted for approximately 34% of all online public email servers on the internet.

Postfix – Pros

• Easy to configure and use
• Elegant (author’s opinion)
• Popular and well documented
• Plenty of community support
• Secure

Postfix – Cons

• No Windows port

Sendmail – Overview + Pros & Cons

Sendmail is an MTA (mail transfer agent) for Unix-like operating systems first released in 1983. Sendmail is a descendant of the original ARPANET delivermail program written by Eric Allman. Allman developed Sendmail as a replacement for delivermail for BSD systems, starting with BSD version 4.1c in 1983. Sendmail is licensed under the Sendmail license. At one point (1996), Sendmail accounted for approximately 80% of all public email servers available on the internet. According to the Security Space study in 2019 Sendmail accounted for approximately 4% of all online public email servers on the internet. Sendmail was acquired by Proofpoint in 2013.

Sendmail – Pros

• Native Windows port available

Sendmail – Cons

• Not as easy to configure as Exim or Postfix
• Not as efficient with resources

Qmail – Overview + Pros & Cons

Qmail is an MTA (mail transfer agent) for Unix-like operating systems first developed in 1995 by Daniel J. Bernstein. At its release, Qmail was touted as a more secure replacement for Sendmail. Qmail’s source code was released to the public domain by its author. According to the Security Space study in 2019 Qmail accounted for approximately 0.07% of all online public email servers on the internet.

Qmail – Pros

• Secure
• Low resource requirements

Qmail – Cons

• Unmaintained
• Most complicated of the four to install
• Config file structure and general operation is less elegant than Postfix or Exim
• Not as popular as the others (less than 1% market share)
• No Windows port

Installation and Configuration Procedure – Environment Setup Notes

Unless otherwise specified, the following environment is used for all installation and configuration procedures to follow:

• Ubuntu Server 18.04.3 LTS
  • Kernel Version: 4.15.0-1045-aws
• Running on an entry-level Amazon Lightsail instance (at the time of this writing, $3.50/mo)
  • 512 MB RAM
  • 1 vCPU
  • 20GB SSD
  • 1 TB Bandwidth

These procedures assume you are starting with a fresh installation of Ubuntu.

As always, don’t forget to start by fully updating Ubuntu:

sudo apt-get update && sudo apt-get dist-upgrade

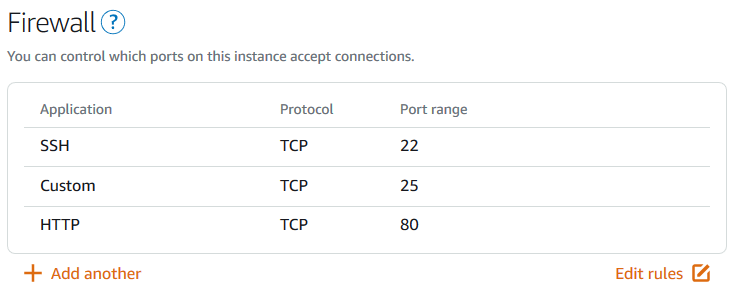

Also, we will need to allow TCP port 25 (the default SMTP port) through the firewall. In our Amazon Lightsail environment, that looks like this:

How to Use Mutt Email Client to Send a Test Email

Mutt is a lightweight, CLI-only email client. It is very useful for testing and as a lightweight general purpose email client.

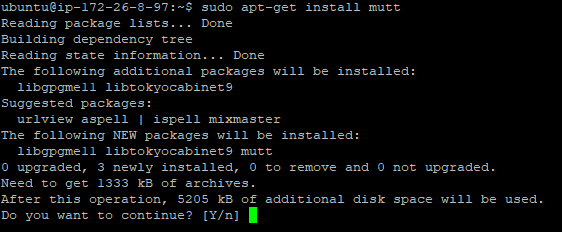

To install Mutt:

sudo apt-get install mutt

We’re not going to go into a full configuration of Mutt. To manually launch Mutt and tell it to use our Maildir, run this:

mutt -f ~/Maildir

Mutt will ask you if you want to create /home/ubuntu/Mail (we don’t) so just press n

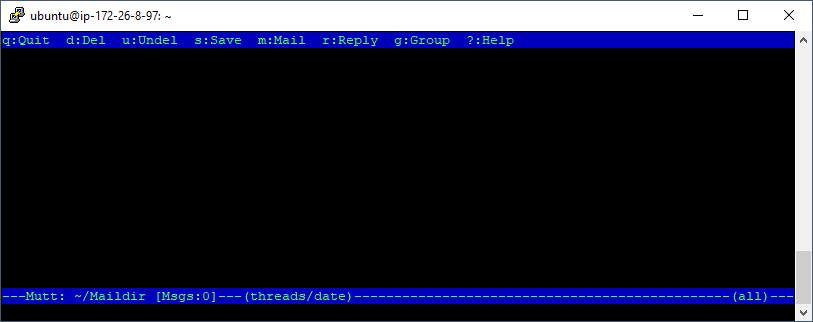

Once Mutt starts, it will look like this:

To send a test email with Mutt, do the following:

1. To start the mail, press m
2. Enter the email address to which you want to send a test email
3. Enter the subject of the test email
4. You will then enter Nano text editor to write the body of your message. Write whatever you want.
5. When finished writing your test message, press ctrl + x
6. Then press y
7. Then press enter

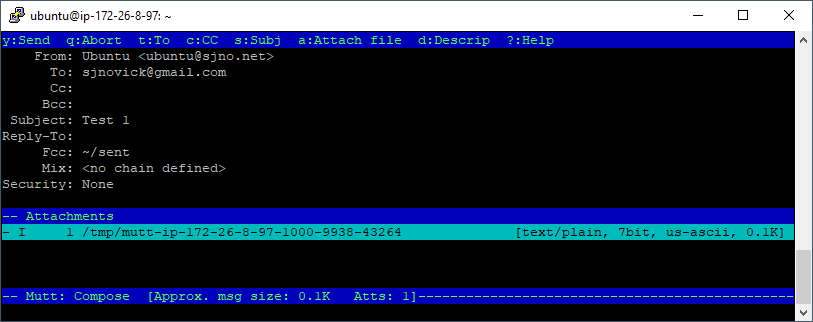

If it has been done correctly, you should see something like this:

Finally, press y to send the email, and you should see “mail sent.”

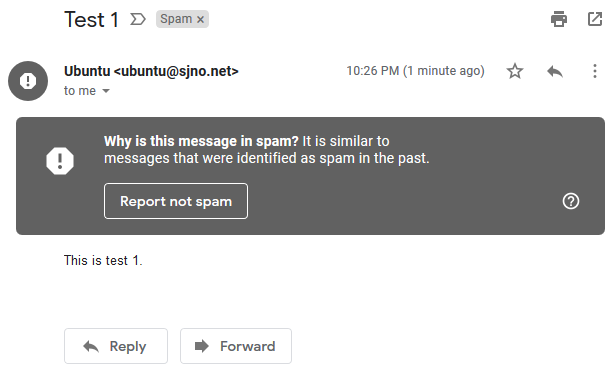

Now, let’s go check our email to see if the message was delivered. Since this is a brand new email server with no DNS configuration or SPF, DKIM or DMARC, our test message will most likely be flagged as spam (if it gets delivered at all). For our tests, we used a Gmail account, and we were able to find our message in the spam folder:

Our email was delivered! This means our email server is correctly sending outbound mail.

Basic Install & Config Procedure for Exim

Exim – Intro & Unique Considerations

Exim version 4 is the default MTA for Debian-based Linux distributions, including Ubuntu 18. Therefore, installing Exim4 on Ubuntu is very straightforward.

Exim – Common config files

/etc/exim4/update-exim4.conf.conf – This is the config file where all settings configured via the configuration user interface are stored. You can either edit this file directly, or re-run sudo dpkg-reconfigure exim4-config

/var/lib/exim4/config.autogenerated – This is the master configuration file that is generated automatically every time you run sudo update-exim4.conf

This file should NOT be edited manually.

Exim – Useful commands

To start the Exim4 daemon:

sudo systemctl start exim4.service

To stop the Exim4 daemon:

sudo systemctl stop exim4.service

To restart the Exim4 daemon:

sudo systemctl restart exim4.service

To generate main Exim4 config files:

sudo update-exim4.conf

Run the configuration user interface for Exim4:

sudo dpkg-reconfigure exim4-config

Exim – Procedure

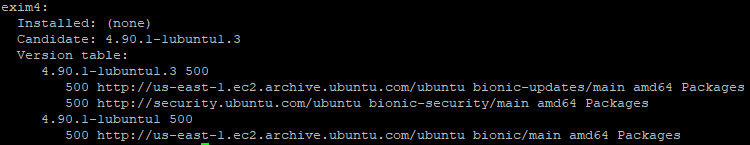

First, see what Exim4 package is available in the default repositories:

sudo apt-cache policy exim4

(At the time of this writing, Exim version 4.90-1 is available in the default repositories.)

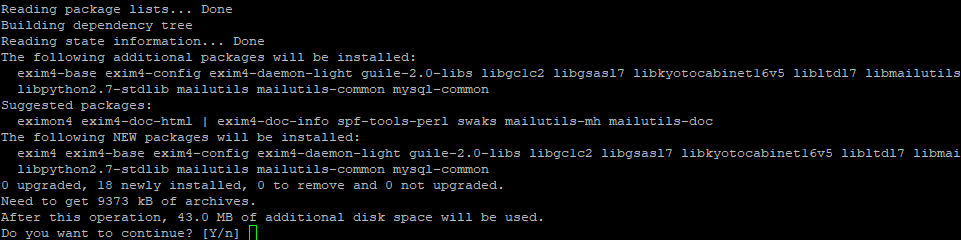

To install Exim4, run the following:

sudo apt-get install exim4

To configure Exim4, run the following, which will display a user interface for configuring many Exim parameters:

sudo dpkg-reconfigure exim4-config

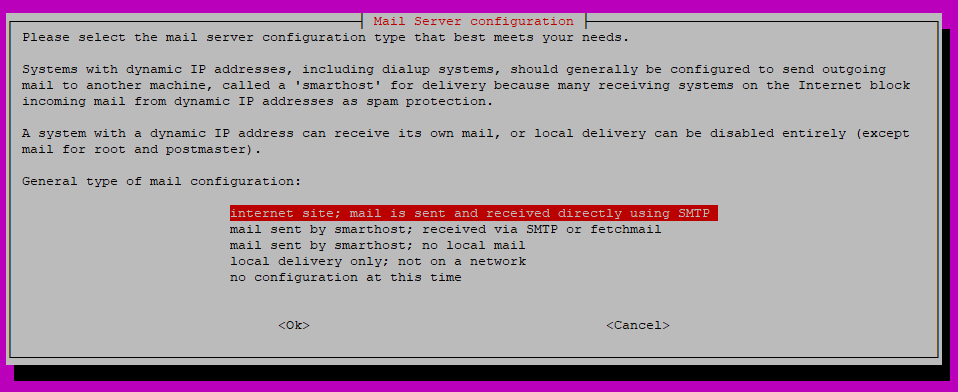

You should see the following screen, allowing you to choose the type of mail server configuration you want. For this example, we will be configuring Exim as an “internet site” or an email server that sends and receives email directly over the internet via SMTP.

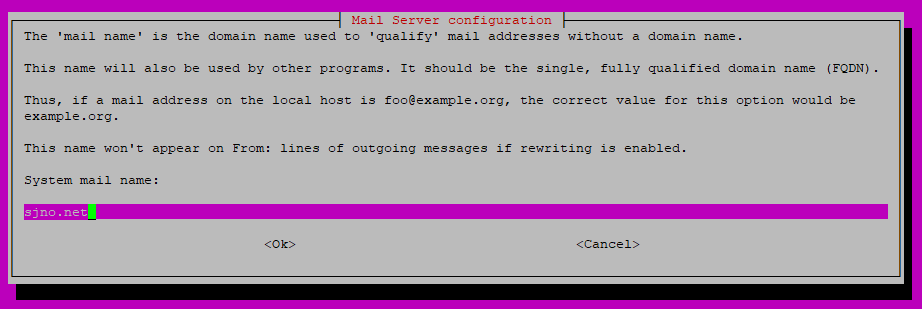

The next screen will prompt you to enter the “mail name” of the server. This should be the domain name where you want to receive email. We will use the name “sjno.net.”

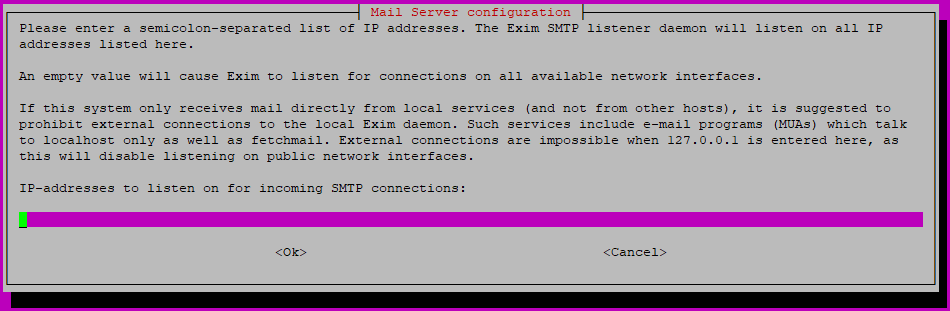

The next screen asks us to define on which IP addresses we want to listen for incoming SMTP connections. Since we want this server to be publicly available to the internet, we will set this to blank.

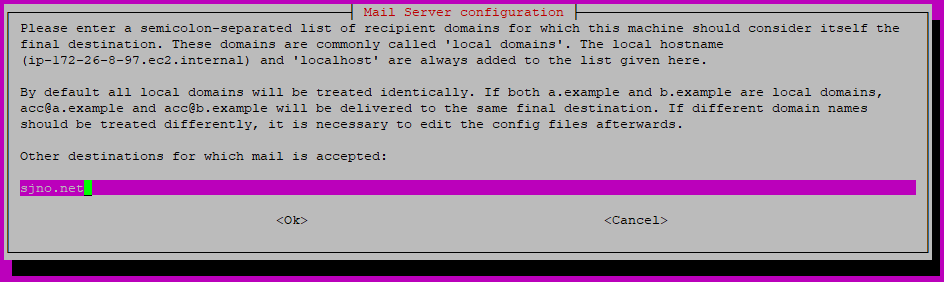

The next screen asks us to define our “local domains.” Local domains are domains for which this email server should be considered the final destination. We will use the domain “sjno.net.”

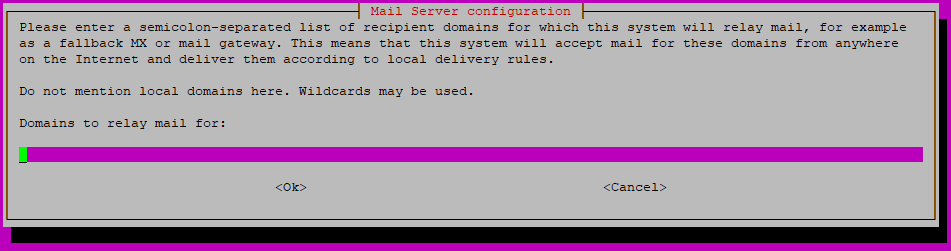

The next screen asks us to define our “relay domains.” Relay domains are non-local domains. In our case, this is everything other than “sjno.net.”For now, we will leave this as the default value (blank).

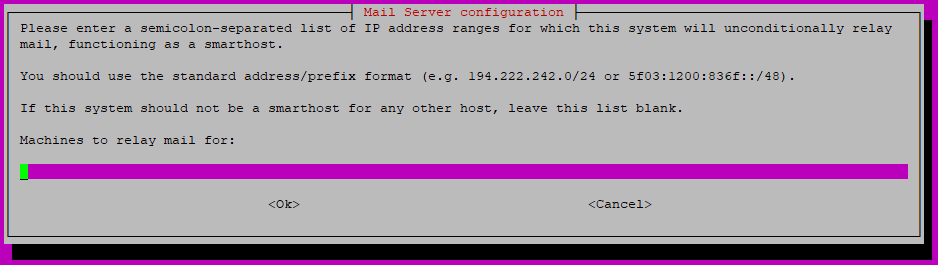

The next screen asks us to define IP addresses for which this system will unconditionally relay email messages. This is useful if we are setting up this email server to be a dedicated “Mail Relay” or “Smarthost.” For now, we will leave this as the default value (blank).

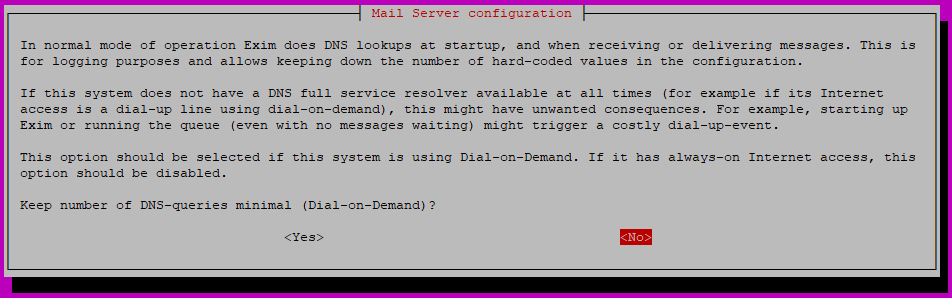

The next screen configures DNS lookup settings. For now, we will leave this as the default value (No).

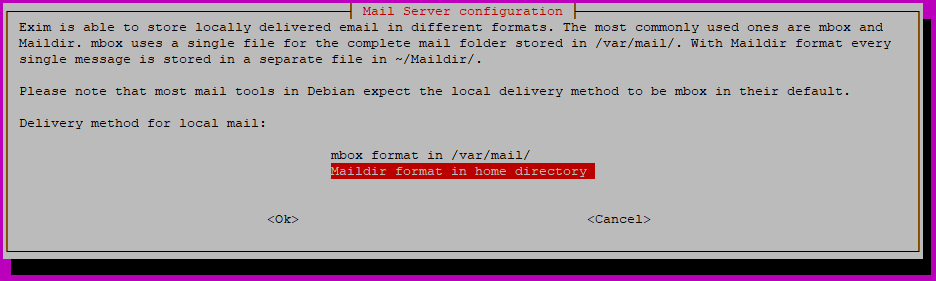

The next screen asks us our preference between two common local mail formats. These two formats are called “mbox” and “maildir.” This choice is mostly user preference. We prefer Maildir, so that is what we will select here.

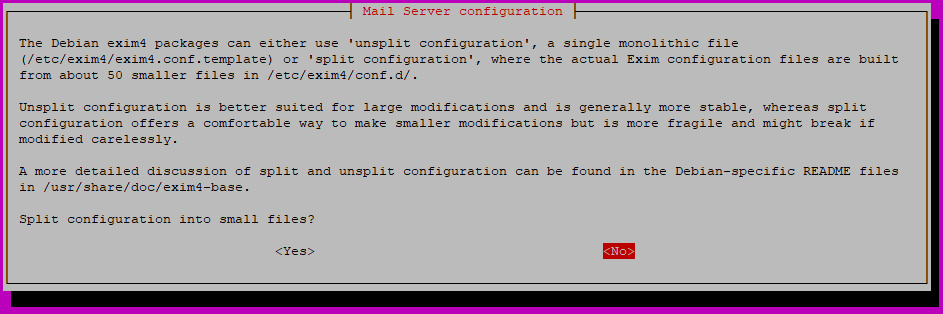

The next screen asks us whether or not we want to split Exim4’s configuration into smaller files, as opposed to the default “monolithic” configuration. There are pros and cons to each. For this example, we are going to choose not to split the config files (No).

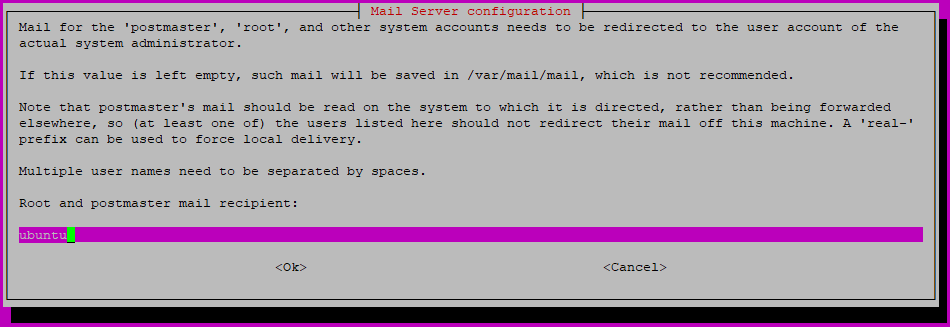

The next screen asks us where mail addressed to postmaster@ and root@ should be delivered. If we leave this blank, mail for those recipients will be saved in /var/mail/mail (not recommended). We will enter the username of our default user, which is “ubuntu.”

Exim – Testing Initial Installation

We now have a basic installation of Exim! Let’s make sure it started and is running OK.

Run this:

ps aux | grep exim4

If Exim is running, the above command should output something similar to this (we can see that there is a running process /usr/sbin/exim4):

Next, run this:

sudo service exim4 status

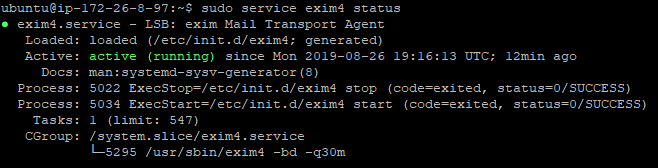

If Exim was started successfully, the command above should output something similar to this (we can see that the active status shows “active (running)” ):

Next, run this:

netstat -aln | grep 25

We should see that our server is listening on port 25:

Also, we should now be able to use a free web-based tool to verify that our server is up and listening to the world. We like to use the “Test Email Server” tool from mxtoolbox.com’s SuperTool (https://mxtoolbox.com/SuperTool.aspx#).

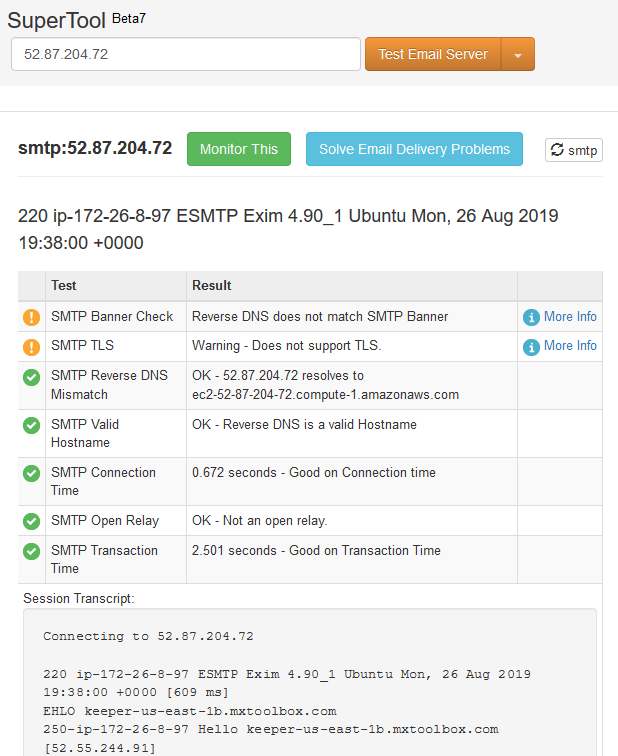

If we point the “Test Email Server” test to the public IP address of our Amazon Lightsail instance, we should see something like this:

To send a test email using the Mutt email client, refer to the section: How to Use Mutt Email Client to Send a Test Email

These tests prove that our basic Exim email server is up, listening, and can send mail. You may be thinking “but that’s just an IP Address! What about DNS?” Continue on to the DNS Setup for Mail Server section for steps on configuring the basic DNS-related settings.

Exim – Troubleshooting

Server doesn’t appear to be listening or responding from the outside?

Don’t forget to open port 25 on your firewall. (See instructions for AWS in the environment notes section.)

Basic Install & Config Procedure for Postfix

Postfix – Intro / Unique Considerations

Postfix is available in the default Ubuntu repositories, therefore installing Postfix is rather straightforward.

Postfix – Common config files

/etc/aliases

/etc/postfix/main.cf

/etc/postfix/master.cf

Postfix – Useful commands

To start Postfix:

sudo postfix start

To stop Postfix:

sudo postfix stop

To restart Postfix:

sudo postfix restart

After modifying main.cf, be sure to run:

service postfix reload

To modify Postfix config programmatically:

sudo postconf

To see how to use Postconf:

man postconf

Postfix – Procedure

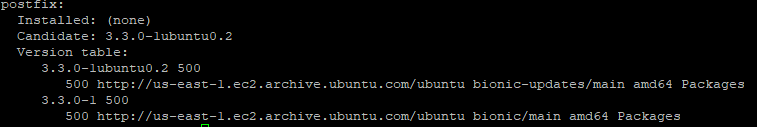

First, let’s see what Postfix package is available in the default repositories:

sudo apt-cache policy postfix

(At the time of this writing, Postfix version 3.3.0 is available in the default repositories.)

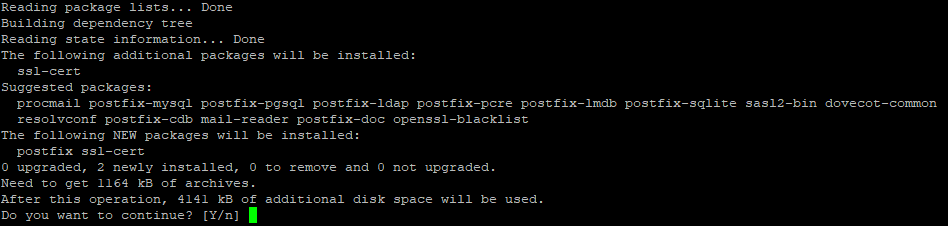

To install Postfix, run the following:

sudo apt-get install postfix

You should immediately be greeted by Postfix’s configuration user interface.

You should see the following screen, allowing you to choose the type of mail server configuration you want. For this example, we will be configuring Postfix as an “internet site” or an email server that sends and receives email directly over the internet via SMTP.

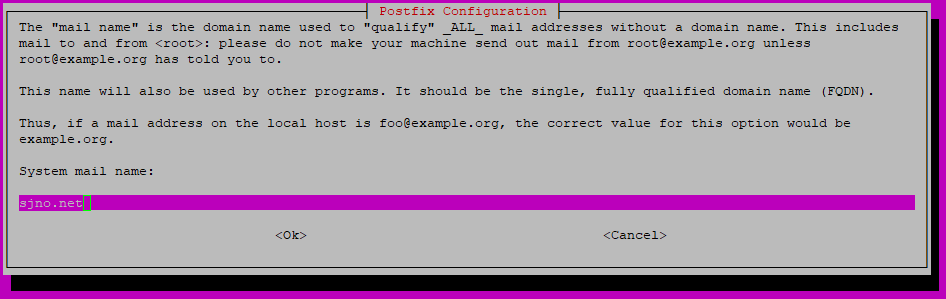

The next screen will prompt you to enter the “mail name” of the server. This should be the domain name where you want to receive email. We will use the name “sjno.net.”

Immediately after hitting enter on this screen, the Postfix configuration user interface will close and Postfix will start scrolling through some automated configuration and startup output. Be sure to read this output for useful tips on performing additional Postfix configuration.

By default, Postfix uses Mbox mail format. We prefer Maildir. First, let’s manually create the Maildir directory structure for our Ubuntu user:

mkdir -p /home/ubuntu/Maildir/{cur,new,tmp}

Then configure Postfix to use Maildir:

sudo postconf -e mailbox_command=

sudo postconf -e home_mailbox=Maildir/

Then, tell Postfix to reload its config:

sudo postfix reload

Postfix – Testing Initial Installation

We now have a basic installation of Postfix! Let’s make sure it started and is running OK.

ps aux | grep postfix

If Postfix is running, the above command should output something similar to this (we can see that there are several Postfix processes running):

sudo service postfix status

If Postfix started successfully, the command above should output something similar to this (we can see that the active status shows “active (exited)”):

netstat -aln | grep 25

You should see that your server is listening on port 25:

Also, Postfix has its own status command:

sudo postfix status

We should now also be able to use a free web-based tool to verify that our server is up and listening to the world. We like to use the “Test Email Server” tool from mxtoolbox.com’s SuperTool (https://mxtoolbox.com/SuperTool.aspx#).

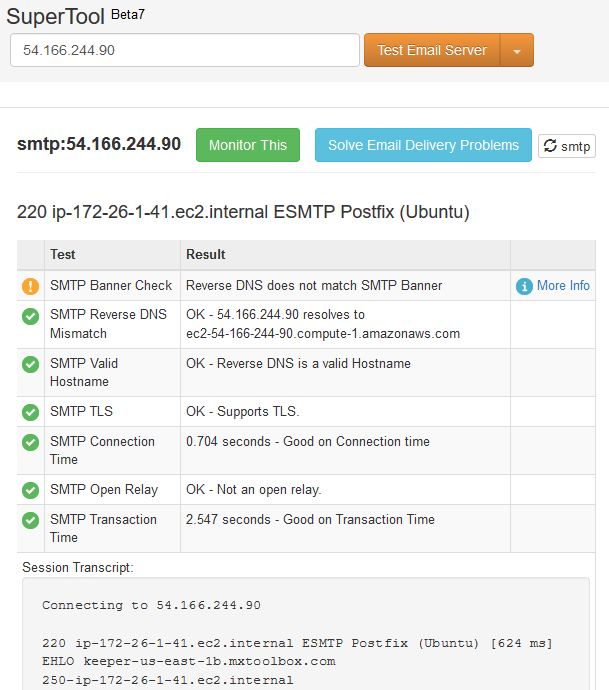

If we point the “Test Email Server” tool to the public IP address of our Amazon Lightsail instance, we should see something like this:

To send a test email using the Mutt email client, refer to the section How to Use Mutt Email Client to Send a Test Email

These tests prove that our basic Postfix email server is up, listening, and can send mail! You may be thinking “but that’s just an IP Address. What about DNS?” Continue on to the DNS Setup for Mail Server section for steps on configuring the basic DNS-related settings.

Postfix – Troubleshooting

Server doesn’t appear to be listening or responding from the outside?

Don’t forget to open port 25 on your firewall. (See instructions for AWS in the environment notes section.)

Basic Install & Config Procedure for Sendmail

Sendmail – Intro / Unique Considerations

Sendmail is available in the default Ubuntu repositories, therefore installing Sendmail is fairly straightforward, though not as simple as Exim or Postfix.

Sendmail – Common config files

/etc/aliases

/etc/hosts

/etc/mail/sendmail.mc

Sendmail – Useful commands

To start Sendmail:

sudo service sendmail start

To stop Sendmail:

sudo service sendmail stop

To restart Sendmail:

sudo service sendmail restart

To run the Sendmail setup user interface:

sudo sendmailconfig

Run this command whenever you update the /etc/aliases file:

sudo newaliases

Sendmail – Procedure

First, let’s see what Sendmail package is available in the default repositories:

sudo apt-cache policy sendmail

(At the time of this writing, Sendmail version 8.15.2 is available in the default repositories.)

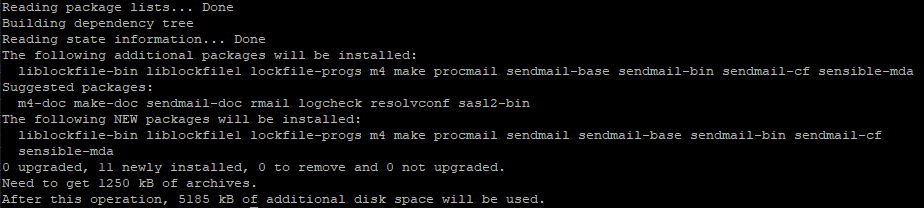

To install Sendmail, run the following:

sudo apt-get install sendmail

After install completes, we need to make a modification to our /etc/hosts file.

sudo vim /etc/hosts

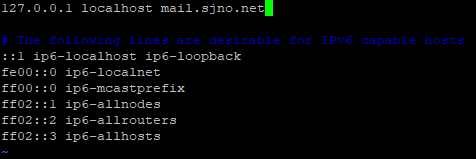

We need to modify the first line that starts with “127.0.0.1 localhost” to include the FQDN (fully qualified domain name) or our mail server. For our example, we will use “mail.sjno.net”:

Save the /etc/hosts file, then run the following command and answer “Y” to every prompt:

sudo sendmailconfig

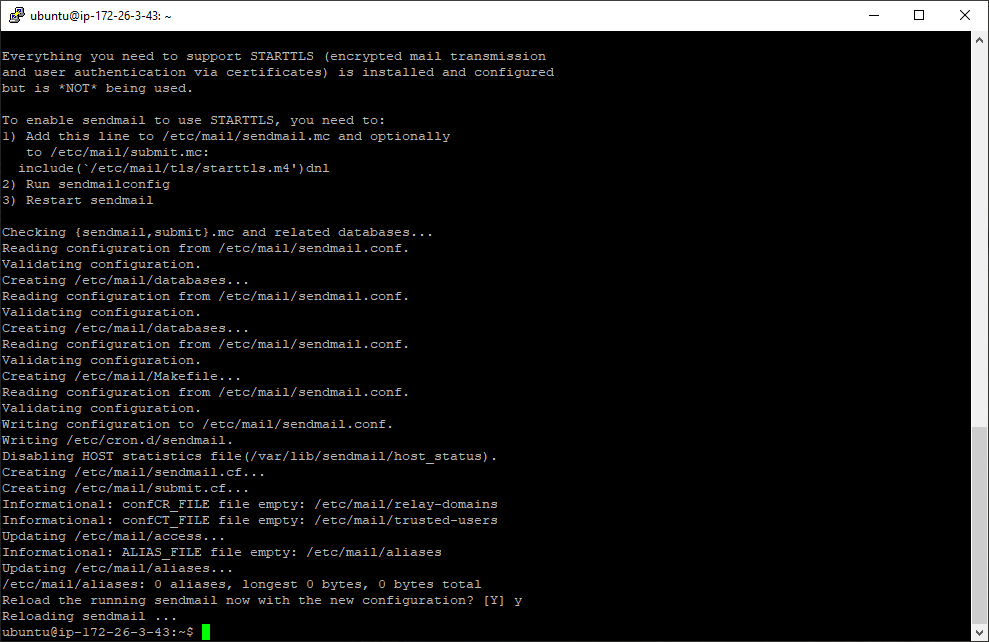

When it’s finished, you should see something like this (note: the first part of the output is omitted):

By default, Sendmail only listens on the local loopback interface (127.0.0.1). To tell Sendmail to listen on all interfaces, we need to modify etc/mail/sendmail.mc:

sudo vim /etc/mail/sendmail.mc

Find the line that looks like “DAEMON_OPTIONS(`Family=inet, Name=MTA-v4, Port=smtp, Addr=127.0.0.1′)dnl” and comment it out by adding “dnl #” to the start of the line.

Create a new line directly below that looks like “DAEMON_OPTIONS(`Family=inet, Name=MTA-v4, Port=smtp’)dnl”

Refer to the screenshot:

Then, restart Sendmail:

sudo service sendmail restart

Sendmail – Testing Initial Installation

We now have a basic installation of Sendmail! Let’s make sure it started and is running OK.

ps aux | grep sendmail

If Sendmail is running, the command above should output something similar to this (we can see that there is a running process “sendmail: MTA: accepting connections”):

sudo service sendmail status

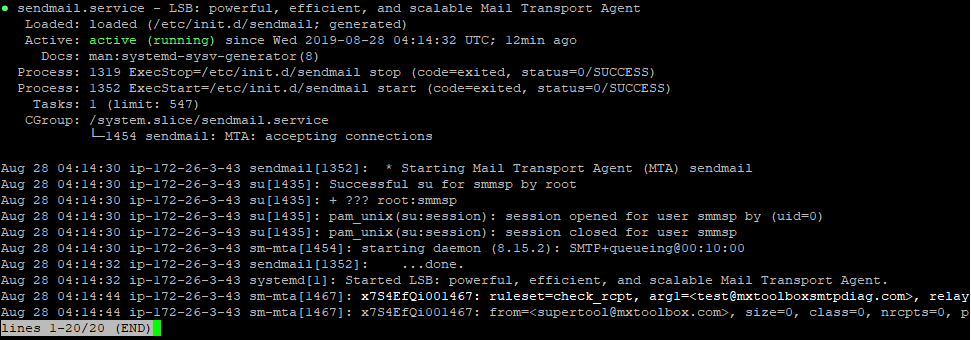

If Sendmail was started successfully, the command above should output something similar to this (we can see that the active status shows “active (running)”):

netstat -aln | grep 25

We should see that our server is listening on port 25:

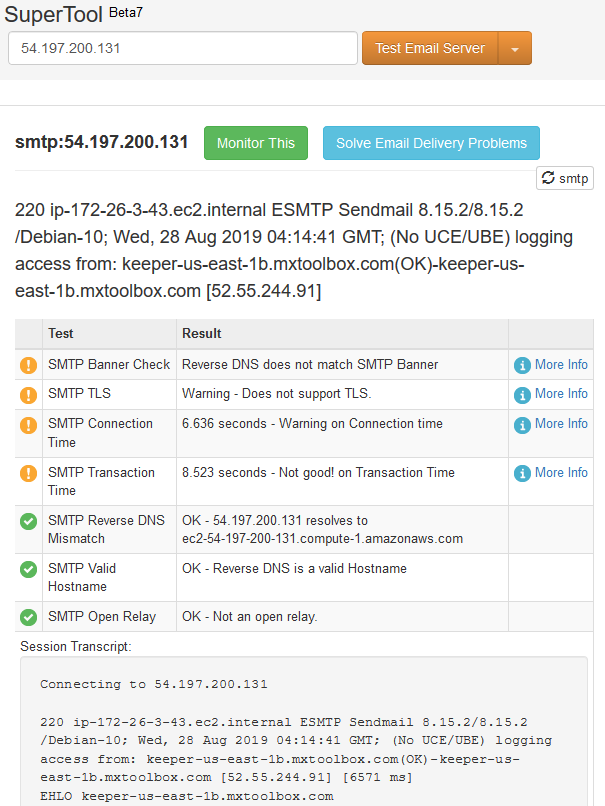

Also, we should now be able to use a free web-based tool to verify that our server is up and listening to the world. We like to use the “Test Email Server” tool from mxtoolbox.com’s SuperTool (https://mxtoolbox.com/SuperTool.aspx#).

If we point the “Test Email Server” tool to the public IP address of our Amazon Lightsail instance, we should see something like this:

To send a test email using the Mutt email client, refer to the section How to Use Mutt Email Client to Send a Test Email

These tests prove that our basic Exim email server is up, listening, and can send mail! You may be thinking “but that’s just an IP Address. What about DNS?” Continue on to the DNS Setup for Mail Server section for steps on configuring the basic DNS-related settings.

Sendmail – Troubleshooting

Server doesn’t appear to be listening or responding from the outside?

Don’t forget to open port 25 on your firewall. (See instructions for AWS in the environment notes section.)

Basic Install & Config Procedure for Qmail

Qmail – Intro / Unique Considerations

Qmail is definitely the most complicated and at least intuitive of the four to configure on Ubuntu. Pay attention to the bit regarding daemontools-run below.

Qmail – Common config files

Many files in /etc/qmail

Many files in /var/ib/qmail

Qmail – Useful commands

To start Qmail:

sudo qmailctl restart

To stop Qmail

sudo qmailctl stop

To restart Qmail:

sudo qmailctl restart

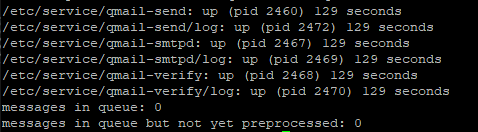

To check Qmail status:

sudo qmailctl stat

Qmail – Procedure

First, let’s see what Qmail package is available in the default repositories:

sudo apt-cache policy qmail

(At the time of this writing, Qmail version 1.06 is available in the default repositories.)

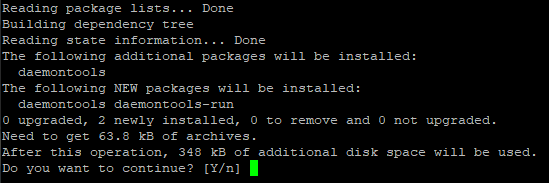

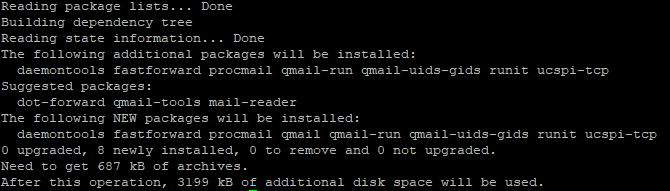

At the time of this writing, installing the default Qmail package on Ubuntu 18.04 does not automatically install at least one necessary dependency to make Qmail work. Let’s manually install that package:

sudo apt-get install daemontools-run

To install Qmail, run the following:

sudo apt-get install qmail

Let’s create a Maildir directory for our user:

mkdir -p /home/ubuntu/Maildir/{cur,new,tmp}

Then, copy and paste the following to do some basic Qmail setup. Be sure to replace all instances of “sjno.net” below with your domain.

sudo sh -c "echo 'sjno.net' > /etc/qmail/defaultdomain

echo 'sjno.net' > /etc/qmail/locals

echo 'mail.sjno.net' > /etc/qmail/me

echo 'sjno.net' > /etc/qmail/rcpthosts

echo './Maildir/' > /etc/qmail/defaultdelivery"

Qmail – Testing Initial Installation

Restart Qmail:

sudo qmailctl restart

If Qmail is working properly, you should see output similar to this:

Check Qmail status:

sudo qmailctl stat

If Qmail started properly, you should see output similar to this:

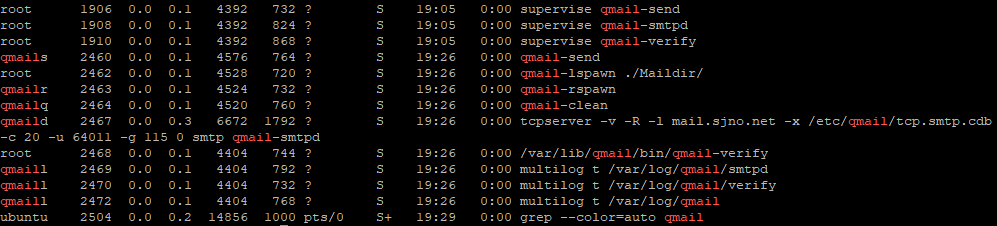

ps aux | grep qmail

If Qmail is running as expected, you will see output similar to this:

netstat -aln | grep 25

This output shows that Qmail is listening on port 25.

Also, we should now be able to use a free web-based tool to verify that our server is up and listening to the world. We like to use the “Test Email Server” tool from mxtoolbox.com’s SuperTool (https://mxtoolbox.com/SuperTool.aspx#).

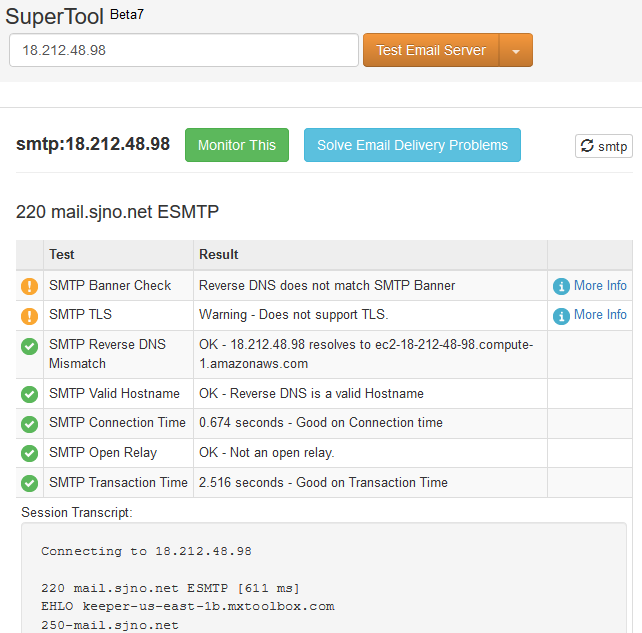

If we point the “Test Email Server” tool to the public IP address of our Amazon Lightsail instance, we should see something like this:

To send a test email using the Mutt email client, refer to the section How to Use Mutt Email Client to Send a Test Email

These tests prove that our basic Qmail email server is up, listening, and can send mail! You may be thinking “but that’s just an IP Address. What about DNS?” Continue on to the DNS Setup for Mail Server section for steps on configuring the basic DNS-related settings.

Qmail – Troubleshooting

If you see errors like this, make sure you have the “daemontools-run” package installed:

unable to open supervise/ok: file does not exist

Server doesn’t appear to be listening or responding from the outside?

Don’t forget to open port 25 on your firewall. (See instructions for AWS in the environment notes section.)

DNS Setup for Mail Server

Testing our email server by sending outbound emails and running tools against our public IP address is great, but what about DNS?

In order to tell the world how to get to your email server, we need to do some DNS setup. We will also setup SPF at the same time.

Requirements to complete this section:

1. You must own a domain name. In this example, we will use the domain sjno.net.
2. You must have the domain name configured with DNS servers. This is configured at your registrar (for example, godaddy.com).
3. You must have access to make changes / add records on your DNS servers for your domain.

Assuming the three requirements above are met, we can create the necessary DNS records. There are many DNS providers available and all of their user interfaces will look different. Or, you could even be running your own CLI-only Linux DNS server with Bind9. Ignoring the differences between user interfaces, the concepts are the same. This example will show the DNS configuration with free DNS provider freedns.afraid.org.

First, let’s create an A Record for our new mail server. An A Record is the most basic type of DNS record. We are just creating a name for our mail server, and pointing it to the public IP address of our server. We’re going to call our server “mail.sjno.net”:

First, let’s create an A Record for our new mail server. An A Record is the most basic type of DNS record. We are just creating a name for our mail server, and pointing it to the public I
